What is Xfinity Router Bridge Mode and How To Use It

Xfinity Wireless Gateway devices are powerful enough to act as a modem and a router. This means you can make do with a single device. However, there are times when you need a dedicated router that is free from all the potential limitations of Xfinity. The solution? Xfinity router Bridge Mode. In this guide, we shall discuss Xfinity Router Bridge Mode and how to use it.

What is Xfinity Bridge Mode?

Bridge mode is an option that you can find on many modem-router combination devices. This mode allows you to establish a bridge between other networking devices. In the context of Xfinity Wireless Gateway, the Bridge Mode lets you use only the device’s modem function.

By default, the device can handle two tasks. One is to convert signals from a coaxial/fiber cable into digital signals that our endpoint devices can understand. Two, use the signals to create a Wi-Fi network that your devices can connect to wirelessly. In other words, it will combine a modem and a router while also offering some advanced features like Xfinity security and wireless network expansion.

So, the Bridge Mode on an Xfinity Wireless Gateway lets you turn off the router part.

The gateway will take in signals from the coaxial/fiber cable and convert them into digital signals, but it does not create a Wi-Fi network. It means you can still use the Ethernet ports on the device to connect to your computer and access the Internet.

If you think about it, Bridge Mode restricts a major capability of your Xfinity router.

Why Use Xfinity Bridge Mode?

Now, you may be wondering why you need to use the Xfinity Bridge Mode in the first place. Well, here are some possible reasons:

Use Your Wi-Fi Router

Sure, Xfinity Wireless Gateways work fine, but they are not always enough. It means you may want to use a Wi-Fi router that you already have. Because the Xfinity Gateway is a combination device, you cannot replace it with a different system. However, you can turn off the router function and use your Wi-Fi router instead. You may want this option if you already have a high-end gaming Wi-Fi router at your disposal but still want an Xfinity connection. When using bridge mode, you don’t need a network setup from scratch.

Better Compatibility

You may want to use a different Wi-Fi router to improve the overall network compatibility as well. Although they work with most devices, you may have trouble customizing the Xfinity router. By using the bridge mode, you can access the beneficial features from the secondary router. For instance, if your smartphone or laptop supports Wi-Fi 7, you may want to use a Wi-Fi 7-enabled router. Instead of waiting for Xfinity to launch the Wi-Fi 7 module, you can use a device from your end.

More Features

Xfinity routers are not the most feature-rich devices out there. So, if you need access to more features, such as QoS or VPN support, you may want to use another router. Since the router cannot work alone, you need to enable bridge mode on the Xfinity router. I always consider going for a customizable Wi-Fi router when I want to have better security. It has been a relief whenever I had to choose another ISP. Most ISPs offer one way or another to use a secondary Wi-Fi router, which is great.

Improved Network Performance

You may also want to use another network system, such as a mesh network. It means setting up a connection from the modem. You get to do it using the bridge mode, and you can use a secondary router that delivers better speed, coverage, bandwidth, etc. If you have one of the old wireless gateways from Xfinity, you have more reasons to rely on Bridge Mode.

Overall, bridge mode on the Xfinity router can help you get rid of other restrictions set by Xfinity. However, you should remember that Bridge Mode comes with some drawbacks.

Configuring Bridge Mode in Xfinity

Now that you know the core reasons for using bridge mode in the Xfinity router, let’s move to configuration.

You can follow these steps to configure Bridge Mode in Xfinity routers:

Prerequisites

Before you begin, you need to ensure a few things. First, you should have the Xfinity Wireless Gateway in a proper working condition with access to the Xfinity network. That is, you must be able to connect to the Wi-Fi network and access the Internet. Similarly, make sure that you have your router ready to connect along with the official power adaptor and an Ethernet cable.

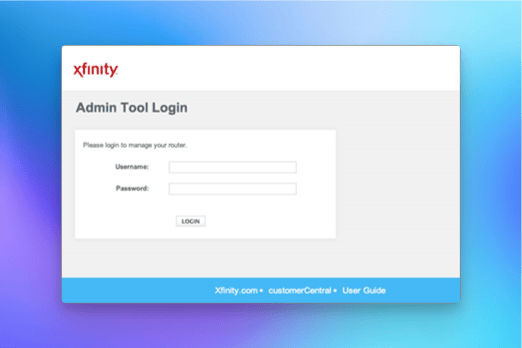

#1 Access the Router Dashboard

To begin, you should be connected to your existing Xfinity Wireless Gateway. Although Wi-Fi does the job, I recommend using an Ethernet cable. This way, you don’t have to worry about signal drops. Once this is done, you need to access the router dashboard.

• Open a web browser and enter the default IP address for the router
• For most gateways from Xfinity, the address is http://10.0.0.1 or http://192.168.0.1. However, I will also recommend checking the router package or label to find the exact IP address.
• Once the page is open, you will see a login page.

• You need to enter the username and password here. You can try combinations like admin and admin and admin and password.

However, it makes sense to recheck the router package. Your Xfinity Gateway may have a unique set of credentials for the device. You may have changed these credentials before as well.

#2 Turn On Bridge Mode

Now that you can access the router dashboard, you need to turn on Bridge Mode. You can see these steps:

• Navigate to Gateway > At a Glance from the sidebar menu.
• Go to the subsection named Bridge Mode and click Enable.

• Confirm your action when you see the pop-up message.

At this point, your Xfinity router will restart and reboot in Bridge Mode.

#3 Configure the Secondary Router

Now that you have turned on Bridge Mode, you need to configure the secondary router. However, keep in mind that Bridge Mode turns off only the Wi-Fi router element. It means you can still use an Ethernet cable to connect your smartphone/printer to the gateway and access the Internet.

However, given that you need a (better) Wi-Fi network, you need to configure the new router.

1. First, connect one end of an Ethernet cable to the LAN port of the Xfinity wireless gateway.
2. Now, plug the other end of the Ethernet cable into the WAN port of the secondary Wi-Fi router.
3. Connect your computer/smartphone to the Wi-Fi router using another Ethernet cable. Alternatively, you can connect to the default Wi-Fi network.
4. Once you connect to the network, you can now set up the Wi-Fi network as you wish.

During this process, you can also configure other options like NAT, MAC filtering, and a new Wi-Fi network. In short, the process will not take more than a few minutes.

Pros & Cons of Xfinity Bridge Mode

Let’s now look at the pros and cons of using Xfinity Bridge Mode.

Pros

• You can use a secondary router that provides better speed and network performance.
• Bridge Mode allows you to access better privacy/security features from a Wi-Fi router.
• It efficiently converts your Xfinity wireless gateway into a single internet modem.
• Bridge Mode gives you an option to use mesh Wi-Fi networks and improve coverage.
• At times, Bridge Mode can offer better compatibility with IoT and legacy devices.

Cons

• Some Xfinity-based features, like the security suite, might not work when you enable Bridge Mode.
• You may not receive on-time support from Xfinity if you face issues with network routing.
• Bridge Mode may interrupt some services like Voice and TV from Xfinity

How to Fix ‘Bridge Mode On, But No Internet’ Issues

One common issue happens when Bridge Mode is on, but you have no internet access. It may happen due to multiple factors. Here are some ways to fix the bridge mode on but no Internet issue after you have set up Bridge Mode for your Xfinity router.

• Check the Internet Connection: You should first check whether the Xfinity wireless gateway has an active connection. If the gateway is not connected, bridge mode will not bridge the Internet access.
• Reconnect Cables: You should also check whether you have connected all the necessary cables to the gateway and the router. Also, ensure that you are using a high-quality Ethernet cable.
• Enable Bridge Mode Again: Sometimes, the configuration may prevent Bridge Mode from working correctly. So, it is a good idea to turn off Bridge Mode and turn it back on again.
• Reset the Router: Even when the Xfinity gateway works, a problem with the Wi-Fi router might stop you from accessing the Internet. So, you may want to try resetting the router.
• Contact Xfinity: You cannot expect much support from Xfinity when using Bridge Mode. However, it may help you reset the gateway.

With these solutions, you can easily restore Internet access to your router connected via Bridge Mode. You should also check whether your Xfinity modem offers something called Advanced Bridge Mode. This might be a great option if you want to connect multiple networking devices to the gateway.

Conclusion

When configured properly, Bridge Mode on the Xfinity router/gateway can help you with many benefits. For starters, it offers better control and performance than most Xfinity gateways. However, you would want to check some options if you use the gateway for Xfinity Voice or associated services.
