NETGEAR routers are popular for many reasons, and their ease of use is one of them. Even if you have zero experience with Wi-Fi routers, setting up a NETGEAR router will not be a hassle. You just need to understand the right steps. In this easy guide, you will find everything you need to setup NETGEAR router for both wired and wireless connections. Shall I start?
Unboxing and Preparing for Setup
Before we begin the actual setup process, you must unbox the package you got from NETGEAR.
This package should have everything you need to power your NETGEAR router and connect it to an internet source. Some models may also have additional Ethernet cables and accessories. Most router packages will have the user manual as well as warranty information.
I recommend keeping this documentation nearby for reference during the setup process. After you are done unboxing the router, keep all the elements in an accessible space.
Physical Setup of the Netgear Router
There are two major elements to the physical setup of the NETGEAR router.
Positioning the Router
You must place the NETGEAR router at a location that provides optimal coverage. However, this location will vary based on the size and type of your house. If you have a single-story house, keep the router at the center so that all devices will have decent coverage. But you can keep the router in a specific room where you have the workplace set up.
Connecting the Hardware
After you have decided on the optimal place to keep the router, you can connect the hardware. Make sure that you:
- Connect the power adaptor to the socket and the power jack to the port on the back
- Now, connect the Ethernet cable from your ONT or modem to the WAN port of the NETGEAR Wi-Fi router.
- You can now set up the first Ethernet connection using the provided Ethernet cable. Connect one end of the cable to the LAN port on the router and the other to the LAN port on your PC.

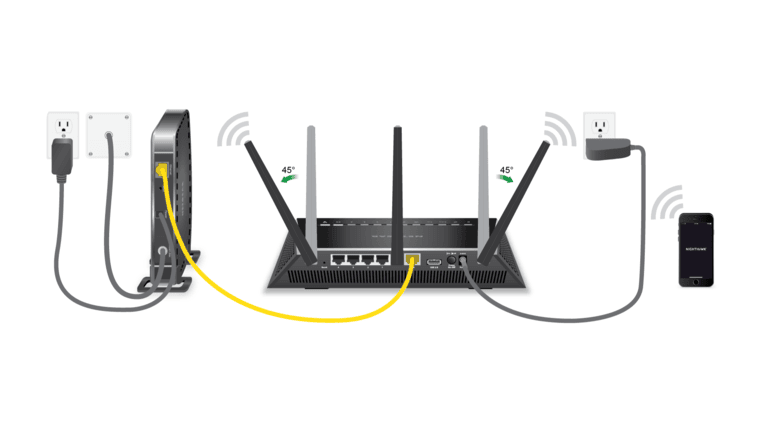

Here’s an overview of how the setup would look like:
Check all these cables to see if they are connected properly. At this point, you can turn on the router using the power socket and the power button.
Setting Up a Wired Connection
Before you proceed with a Wi-Fi connection on your NETGEAR router, you must set up a wired connection. It is necessary to turn on the wireless connection option first. Fortunately, the process is simple enough.
Connecting Your Computer to the Router
You might have done this step already. But if you haven’t, you need to connect your computer to the router using an Ethernet cable. Plug one end of the Ethernet cable to your computer and the other to a LAN port of your router. You may need an Ethernet adaptor if your system doesn’t have a built-in port.
Accessing the Router’s Web Interface
After you have connected your computer to the NETGEAR, you can access the router’s web interface. This interface allows you to make changes, including the basic setup of Wi-Fi and security. However, you need to find the default IP address of your router to access this web interface.
192.168.1.1 or 192.168.0.1 is the common default IP address for NETGEAR routers. This means you can enter this IP address using a web browser URL bar and access the dashboard in a few seconds. However, some Wi-Fi router models may have unique IP default IP addresses. You can find them out by:

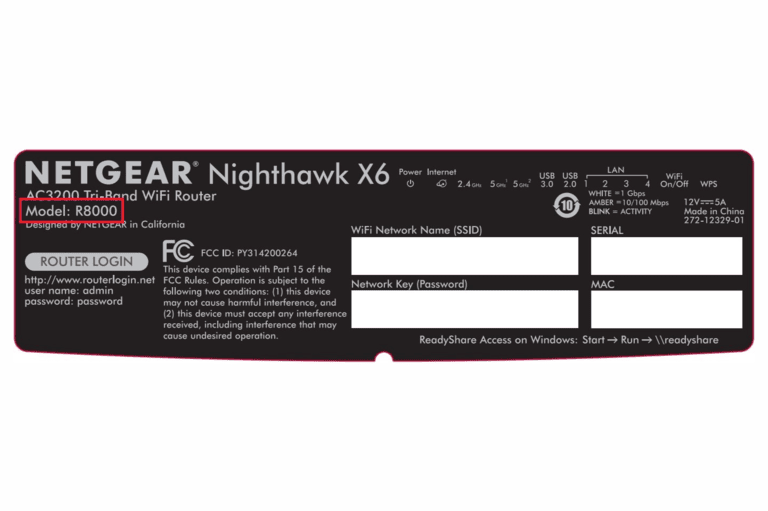

- Checking the product panel on the side/bottom of your NETGEAR router
- Going through the user manual and the product packaging
- Checking the network settings of the wired device you have connected
Enter the IP address, and we can move to the next step.
Logging into the Netgear Router
Now that you can access the web interface of the Wi-Fi router, you should log in to the dashboard. You must keep in mind two things in this regard.
Default Login Credentials
While setting up a new NETGEAR router, you should enter the default login credentials for the device. These credentials are usually placed on the router label or the packaging. If you can’t find this info, you should try a few common options like admin and admin and admin and password.
Importance of Changing Default Credentials
If you have a modern NETGEAR router, it would likely have a unique username-password combination. This is safer and more convenient. But you should change the default credentials to be on the safe side. This way, even if someone can access the router panel/package, they cannot modify your wired/wireless network.
Configuring Router Settings
At this point, you can start configuring network-related settings for your NETGEAR Wi-Fi router.
Running the Setup Wizard
Many NETGEAR routers are equipped with a setup wizard, which lets you configure the Wi-Fi router in just a few minutes. The setup wizard will start when you log in to the web interface the first time. You can pick an option that suits you the best.
Setting Up Internet Connection
During the setup wizard, you need to provide the information that your ISP has given you. For instance, your ISP may want you to use a specific connection type. I have seen that most ISPs go for DHCP, while some need you to choose PPPoE.
Once you have ensured access to the Internet, you can proceed with the next steps.
Configuring Wireless Settings

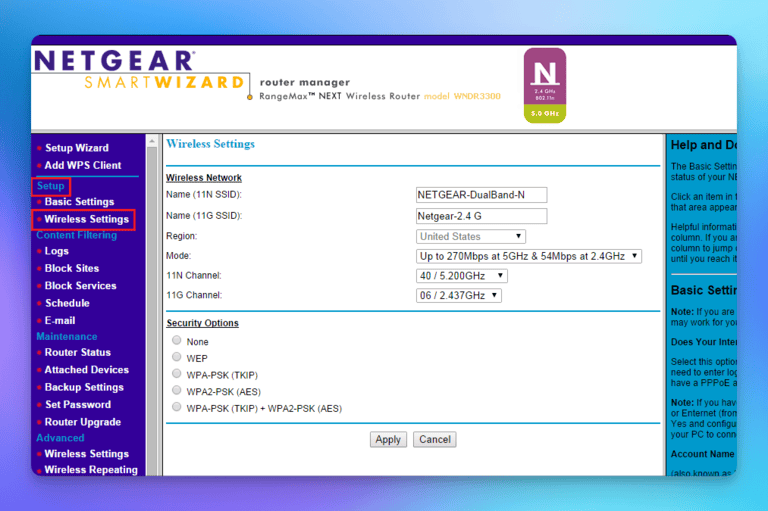

In this part, we will configure the wireless settings for your NETGEAR router. You must first log in to the web interface of your router using the administrator credentials. Then, you need to navigate to Settings > Wi-Fi > choose Wireless Settings. Alternatively, go to Setup > Wireless Settings. On this page, you can find a variety of information about your NETGEAR wireless network.
Setting SSID (Network Name)
First and foremost, you need to choose a convenient, easy-to-remember, yet unique network name (SSID) for the Wi-Fi network on the NETGEAR router. I don’t recommend keeping the default SSID that the router comes with, as it would allow threat actors to recognize your network as long as they have physical access to your Wi-Fi router label/package. A Wi-Fi name is a place where you can be quite creative, by the way.
Setting a Strong Password
Though you have some choice when it comes to setting the SSID, it’s not the same case with passwords. A Wi-Fi password, also known as the Network Security Key, must be unique, difficult to guess, and complex. It should positively include upper case letters, lower case letters, numbers, and special characters. You need to come up with such a password and set it up for your NETGEAR router.

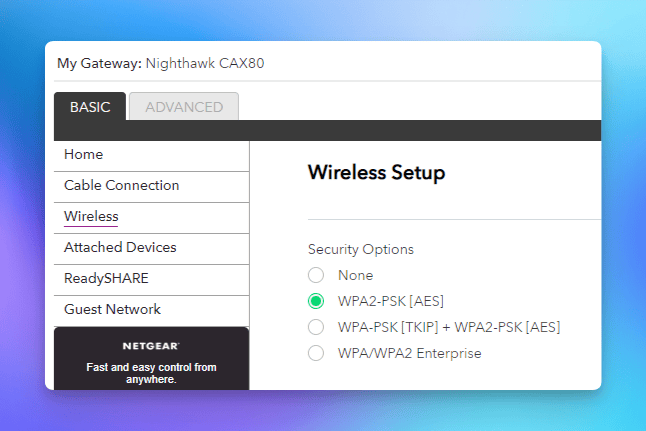

Selecting Security Protocols
While configuring the wireless network, you should also choose the most appropriate security protocol. You have two options these days: WPA2 and WPA3. Some routers may offer an option for WEP protocol, but you should avoid this at all costs. Compared to WEP and WPA, WPA3 and WPA2 offer better encryption, among other advantages.
Connecting Devices to the Wi-Fi Network
At this point, your NETGEAR Wi-Fi router will be turned on with an active network. It means you can use any Wi-Fi-enabled device to connect to the network. The most common way is to select the network SSID from the list and enter the password when asked. However, you may want to configure WPS on the NETGEAR Wi-Fi router if you want to connect devices like printers or Wi-Fi extenders.
Some Additional Tips
Here are some pointers that will help you keep the NETGEAR router running smoothly over time.
- After you have set up the wired and wireless networks, you must update the router firmware to the latest version. This step can improve network security, fix bugs, and offer a better Wi-Fi experience.
- Make sure that the router is not overheated or overloaded. Both situations can cause problems with connectivity, leading to random warning lights and connection loss.
- Whenever you want to make router-level changes, use a wired connection instead of Wi-Fi. Doing so can help you stay away from stability issues.
Conclusion
By following the steps and the additional tips I have mentioned, you can quickly create a Wi-Fi network using a NETGEAR router. You should also check whether your router supports the Nighthawk app. In that case, you may have an easier way to set things up.
